EF Johnson

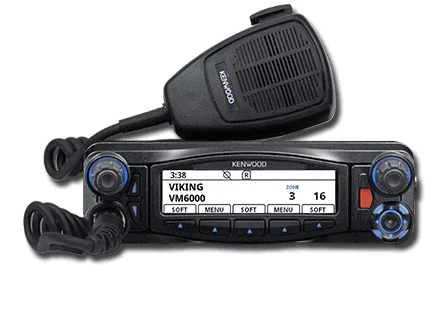

Viking VM6000
Uncompromised quality and performance with public safety ergonomics, the KENWOOD Viking® is the industry’s only mobile platform providing TrueVoice™ noise cancellation.
Performance Characteristics
Frequency band:
VHF/UHF/700MHz/800MHz
Frequency range:
VM 6730 - 136-174 MHz
VM 6830 - 450-520 MHz, 380-470 MHz
VM 6930 - 763-776, 851-870 MHz
Power Output:
VM 6730 - 5W – 50W
VM 6830 - 5W – 45W / 5W – 40W
VM 6930 - 2W – 30W / 2W – 35W
Number of Channels/Groups/Zones:
225 Channels / 255 Zones
Channel spacing:
VM 6730 - 12.5 / 15 / 25 / 30 kHz Analog - 12.5 kHz Digital
VM 6830 - 12.5 / 25 kHz Analog - 12.5 kHz Digital
VM 6930 - 12.5 / 25 kHz Analog - 12.5 kHz Digital
Physical Characteristics
Dimensions W x H x D
6.73 x 1.89 x 7.24 in
Weight
VM 6730 - 3.44 lbs.
VM 6830 - 3.44 lbs.
VM 6930 - 3.88 lbs.
Control Head
- Public safety knobs & ergonomics
- High contrast transmissive color display for direct sunlight & nighttime viewing; not compromised by polarized sunglasses
- Resolution of 480 x 128 pixels
- Viewing angle of 120°
- User selectable themes (8 themes available)
- Day & night display options
- An optional KCH-21RV Handheld Control Head (HHC) can be used with the VM6000 radio
User Environment
Operating temperature
Mil spec
IP Standards
- Mixed protocol operation (P25 Phase 1 & 2 Trunking, P25 Conventional, Viking16, FM Analog)
- 1024 channels (2048 option)
- Mixed protocol zones
- P25 Authentication (Link Layer Authentication)
- P25 IP packet data
- P25 GPS data (built in GPS)1
- MDC-1200 & GE-Star signaling
- Analog & P25 Conventional vote scan
- Remote mount only (Viking Control Head)
- Dual Viking Control Heads (option)
- External speaker
- Fixed control station
- Wi-Fi
- Bluetooth
- Instant Recording Replay (IRR)
- Voice Recording
- Encryption
- ARC4™ software encryption; compatible with Motorola ADP™
- DES-OFB · AES-256 (FIPS 140-2) Single and Multi-Key
- Over-the-Air-Rekeying (OTAR)
- VK5000 or Motorola KVL3000/KVL4000 Keyloaders
Compatible with P25 Systems
- ATLAS® P25 Phase 1 and Phase 2 System
- Motorola Astro® 25 - P25 Phase 1 & Phase 2
- Harris VIDA® - P25 Phase 1 & Phase 2
- Airbus (formerly Cassidian) VESTA™ Radio - P25 Phase 1 & Phase 2
- Perpetual Software License Program – Supports transferable, perpetual P25 software options
- Vault™ – Secure, centralized management for P25 system keys and credentials
TrueVoice™
TrueVoice™ is the most advanced noise cancellation technology in P25 radios. It is a standard feature with all KENWOOD Viking® radios and works with any accessory without the need for additional configuration.
Having radio communications with clear audio can often be a matter of life or death. It is imperative that first responders can communicate even in the most challenging noise environments.
EFJohnson is confident you will agree that KENWOOD P25 radios with TrueVoice technology outperform all other P25 radios. Make the side-by-side test so you can hear the TrueVoice difference.
Enhanced Vehicular Repeater Solution (EVRS)
Extend portable coverage and provide a P25 trunked experience to portable users. First responders need reliable, mission-critical communications. In networks designed for mobile coverage, working inside buildings or over rough terrain makes communication challenging for portable users.
Brochures
For more information on accessories, please Contact Us
VM 6730 - 136-174 MHz
VM 6830 - 450-520 MHz / 380-470 MHz
VM 6930 - 763-776, 851-870 MHz
