EF Johnson

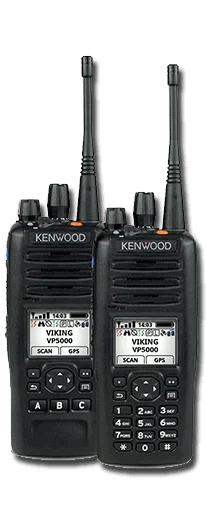

Viking VP5000
At just under 5.5 inches tall, these small KENWOOD Viking portable radios are packed with advanced features for today’s public safety agencies.
Performance Characteristics
Frequency band:
VHF/UHF/700MHz/800MHz
Frequency range:
VP 5230 - 136-174 MHz
VP 5330 - 450-520 MHz, 380-470 MHz
VP 5430 - 763-776, 851-870 MHz
Power Output:
VP 5230 - 1W – 6W
VP 5330 - 1W – 5W
VP 5430 - 1W – 3W
Standard battery chemistry type:
Li-Ion
Number of Channels/Groups/Zones:
1024 Channels / 255 Zones
Channel spacing:
VP 5230 - 12.5 / 15 / 25 / 30 kHz Analog - 12.5 kHz Digital
VP 5330 - 12.5 / 25 kHz Analog - 12.5 kHz Digital
VP 5430 - 12.5 / 25 kHz Analog - 12.5 kHz Digital
Physical Characteristics
Dimensions W x H x D (with standard battery)
2.28 x 5.47 x 1.56 in
Weight (with standard battery)
14.3 oz
Keypad / Keys
Full key models (w/numeric keypad) & standard key models (w/o numeric keypad)
Display
User Selectable Color Themes
- Multi-line text
- Multiple visual indicators including battery health & signal strength
- Day & night user selectable display options (8 themes available)
User Environment
Operating temperature
Mil spec
IP Standards
- Mixed protocol operation (P25 Phase 1 & 2 Trunking, P25 Conventional, Viking16, FM Analog)
- Mixed protocol zones (each channel in a zone can be from a different system)
- 1024 channels
- 1-Watt audio output for high noise environments
- Voice annunciation & custom announcement creation
- Fully ruggedized - IP67 & MIL-STD-810 C/D/E/F/G
- Full key models (w/numeric keypad) & standard key models (w/o numeric keypad)
- Built-In GPS receiver/antenna for enhanced awareness
- MDC-1200 & GE-Star signaling
- P25 Authentication
- Bluetooth®
- Man Down
- Instant Recording Replay (IRR)
- Voice Recording
- Encryption
- ARC4™ software encryption; compatible w/Motorola ADP™
- DES-OFB
- AES-256 (FIPS 140-2) Single and Multi-Key
- Over-the-Air-Rekeying (OTAR)
- VK5000 or Motorola KVL3000/KVL4000 Keyloader
Compatible with P25 Systems
- ATLAS® P25 Phase 1 and Phase 2 System
- Motorola Astro® 25 - P25 Phase 1 & Phase 2
- Harris VIDA® - P25 Phase 1 & Phase 2
- Airbus (formerly Cassidian) VESTA™ Radio - P25 Phase 1 & Phase 2
- Perpetual Software License Program – Supports transferable, perpetual P25 software options
- Vault™ – Secure, centralized management for P25 system keys and credentials
- Perpetual Software License Program – Supports transferable, perpetual P25 software options
- Vault™ – Secure, centralized management for P25 system keys and credentials
TrueVoice™
TrueVoice™ is the most advanced noise cancellation technology in P25 radios. It is a standard feature with all KENWOOD Viking® radios and works with any accessory without the need for additional configuration.
Having radio communications with clear audio can often be a matter of life or death. It is imperative that first responders can communicate even in the most challenging noise environments.
EFJohnson is confident you will agree that KENWOOD P25 radios with TrueVoice technology outperform all other P25 radios. Make the side-by-side test so you can hear the TrueVoice difference.
Enhanced Vehicular Repeater Solution (EVRS)
Extend portable coverage and provide a P25 trunked experience to portable users. First responders need reliable, mission-critical communications. In networks designed for mobile coverage, working inside buildings or over rough terrain makes communication challenging for portable users.
Brochures
For more information on accessories, please Contact Us
VP 5230 - 136-174 MHz
VP 5330 - 450-520 MHz / 380-470 MHz
VP 5430 - 763-776, 851-870 MHz
